BG202
Pixel Resolution:
1628(H) x 1236(V) 2M
Pixel Size (um):
4.40 x 4.40
Frame Rate (fps):
20
Sensor format:
1/1.8 CCD
Scan area (mm):
7.16(H) x 5.44(V)
Aspect Ratio:
4:3
Standard sensitivity:
525lx (F8, 1/20s)
Min. sensitivity:
2lx (F1.4, Gain +18dB, Video level 50%)
Black Level:
-5 to +25%
Gamma:
1.0 to 0.45
Gain:
0 to +18dB
Power requirement:
PoE/DC12V
Power consumption:
PoE: 3.6W Max / DC12V: 3.2W Max
Video format:
GVSP_PIX_MONO8:MONO 8bit/GVSP_PIX_MONO10:MONO 10bit
Electronic Shutter Method:
N/A
Sensor Vendor:
Sony Corporation
Lens Mount:
C mount

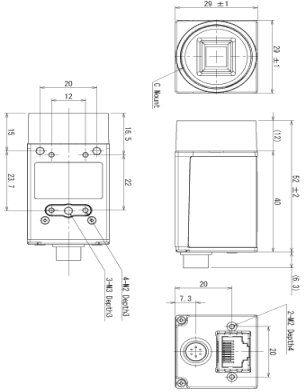

Housing Size (LxWxH) in mm:
29(W) x 29(H) x 40(D)
Weight:
approx.53g
