STV-8M-IR
SWIR Lenses
Introducing High resolution and low distortion SWIR lens

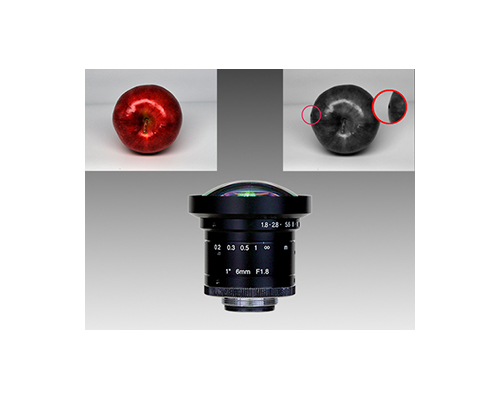

SWIR (Short Wave Infrared) band covers from 900nm – 1700nm having compatible wavelength with InGaAs camera. The combination of InGaAs camera and SWIR lens enables the user to inspect sub-surface images such as MEMS device, photovoltaics, and moisture of the apple detected is darker.
Applications:
- Sub-surface inspection (3D stack, wafers)
- Solar cell inspection
- Surveillance
- Quality control
- And More
Technical Specifications
Resolution:
3MP
Image Format:
1"
Focal Length:
8mm
F number:
F1.4
Relative Aperture:
F=1:1.4
Iris Range:
1.4 to 22
Angle Field of View:
79.7°(H) x 62.9°(V)

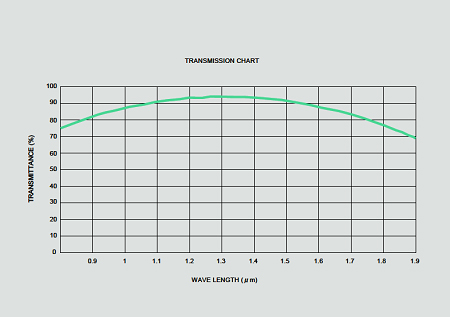

Objective wave length:
900 to 1,900nm
TV Distortion(＠Far):
-0.1％
M.O.D.:
0.12m(@900nm), 0.38m(@1,700nm)
Back Focal Length:
11.1mm
Flange Back:
17.526mm
Operation:
Focus : Manual / Iris : Manual
Mount:
C
Filter Size:
M55 P=0.75

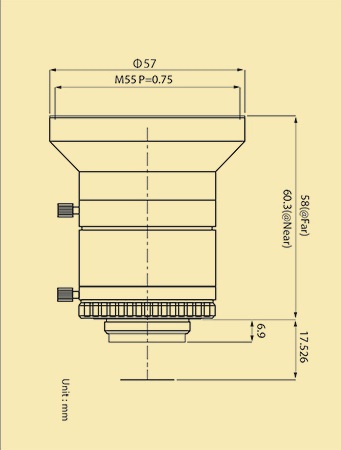

Dimensions:
Φ57 x 60.3mm (max.)
Weight:
201g
