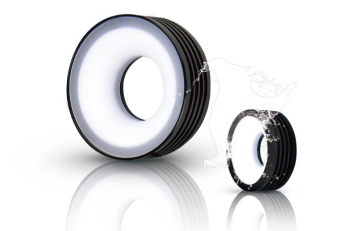

Multi - Position Ring Light SRM Series

A single lighting solution for everything from high- to low-angle illumination. It is highly versatile with variable illumination distance.

More information available upon request.

Multi - Position Ring Light

Capable of illuminating targets from finely adjustable positions for inspection of external surfaces, printing, defects and also: (IP67 standard-compliant)

Lineup includes white, red and blue light models
Serves as a multi-purpose ring light that is not susceptible to the donut effect - where the center of the illuminated area suffers from inadequate lighting from any position
IP67 standard compliant for Dust & Waterproof series

Standard Type
Dust & Waterproof

Model	Light Color	Power Consumption (W)	Input Voltage	SAG*
SRM-55-AR	Red	4.5	DC12V	95
SRM-55-W	White	4.5	DC12V	C2
SRM-55-B	Blue	4.5	DC12V	C5
SRM-80-AR	Red	8.5	DC12V	7F
SRM-80-W	White	8	DC12V	AC
SRM-80-B	Blue	8	DC12V	AE
SRM-110-AR	Red	12	DC12V	87
SRM-110-W	White	13.5	DC12V	AC
SRM-110-B	Blue	13.5	DC12V	AE
SRM-130-AR	Red	14.5	DC12V	80
SRM-130-W	White	16	DC12V	A6
SRM-130-B	Blue	16	DC12V	A9
SRM-200-AR	Red	24	DC12V	7E
SRM-200-W	White	24	DC12V	AA
SRM-200-B	Blue	24	DC12V	B2

Model	Light Color	Power Consumption (W)	Input Voltage	SAG*
SRM-90-WP-AR	Red	8.5	DC12V	7F
SRM-90-WP-W	White	8	DC12V	AC
SRM-90-WP-B	Blue	8	DC12V	AE
SRM-140-WP-AR	Red	14.5	DC12V	80
SRM-140-WP-W	White	16	DC12V	A6
SRM-140-WP-B	Blue	16	DC12V	A9
