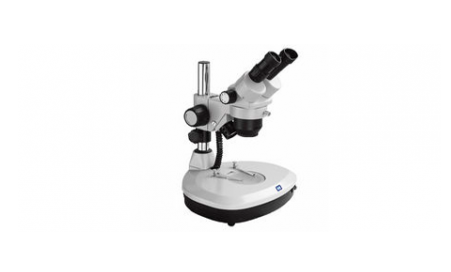

Stereo Microscope
Seiwa has been a manufacturer of various types of stereo microscopes for many years. Each microscope has many features that make them unique.
More information available upon request.
Stereo Microscope
Stereo Microscope
Trinocular tube port for cameras. Different illumination configurations available and suitable for viewing strongly reflective samples such as wafers, IC chips, LCD substrates, etc.
| Model | Eyepieces | Objectives | Field Number | Focusing | Stand | Dust Cover | Net Weight | Dimensions | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Cross roller slide system, Rack & Pinion vertical adjustment, 50mm stroke
|
Pole type 25mmφ,L330mm,200x200mm
|
Vinyl cover
|
8.9kg
|
H440xW200xD300mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Rack & Pinion system.120mm stroke
|
w/Arm type transmitted illuminator
|
Vinyl cover
|
8.3kg
|
H430xW200xD300mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Rack & Pinion system.120mm stroke
|
w/Arm type transmitted illuminator
|
Vinyl cover
|
8.3kg
|
H430xW200xD300mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Rack & Pinion mechanism, travel 50mm
|
φ25transmitted frost glass plate､ fluctuation165mm
|
Vinyl cover
|
7.5kg
|
H392xW205xD305mm
|
|
|
|
|
W.F20x
|
0.375x2.25x
|
33 mm～5.4 mm
|
Rack & Pinion mechanism, travel 50mm
|
|
|
2.5kg
|
H259x160x215
|
|
|
|
|
W.F20x
|
0.375x2.25x
|
33 mm～5.4 mm
|
Rack & Pinion mechanism, travel 50mm
|
|
|
2.3 kg
|
H232xW160xD293mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Fine Adj.:Rack&Pinion system,50mm stroke Coarse Adj.:Pole Clamp system,160mm stroke
|
350mmx500mm Large Base.Max. 294mm(of pole to optic axis)
|
Vinyl cover
|
10kg
|
H325xW350xD500mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Rack and pinion system, 50mm stroke
|
|
Vinyl cover
|
2.1kg
|
H220xW130xD310mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Fine Adj.:Rack&Pinion system,50mm stroke Coarse Adj.:Pole Clamp system,abt.60mm stroke
|
Pole type 19mmφ,illuminator base w/stage plate 100mmφ,and two clips
|
Vinyl cover
|
4.5 kg
|
H345xW130xD310mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Fine Adj.:Rack&Pinion system,50mm stroke Coarse Adj.:Pole Clamp system,abt.300mm stroke
|
H425mm.W250mm.D450mm. Travel:(V)300mm.(H)250mm. Fine Adj.:50mm by Rack&Pinion.360°rotatable.
|
Vinyl cover
|
16.0kg
|
H425xW250xD724mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Fine Adj.:Rack&Pinion system,50mm stroke Coarse Adj.:Pole Clamp system,abt.60mm stroke
|
W205mm.D305mm,Pole type 19mmφ
|
Vinyl cover
|
6.5kg
|
H325xW205xD305mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Fine Adj.:Rack&Pinion system,50mm stroke Coarse Adj.:Pole Clamp system,abt.60mm stroke
|
Pole type 19mmφ,plane base w/stage plate 100mmφ(black&white) and two clips
|
Vinyl cover
|
4 .5kg
|
H325xW205xD305mm
|
|
|
|
|
S.W.F 10x
|
0.75x～4.5x
|
29.3mm～4.8mm
|
Fine Adj.:Rack&Pinion system,50mm stroke Coarse Adj.:Pole Clamp system,abt.60mm stroke
|
Pole type 19mmφ,Plane base w/stage plate 100mmφ(black&white) and two clips
|
Vinyl cover
|
3.0kg
|
H310xW130xD310mm
|
|
