FVL series Telecentric lens
Telecentric Lens for 400K-pixel camera
Telecentric lens VGA camera. With 65mm of WD, it’s ideal for the integration into compact equipment.
Selectable from three types: straight, L-shape and with coaxial lighting port.
Selectable from three types: straight, L-shape and with coaxial lighting port.
What’s New
| Model | Magnification | Working Distance | Focal Depth | Resolution Power | N.A. | F number | Camera mount | Maximum sensor size |
|---|---|---|---|---|---|---|---|---|
| FVL-0.5X-65D-CA | 0.5X | 65 | 1.7mm | 8.0μm | 0.046 | 5.4 | C-MOUNT | Under 1/2 inch camera |
| FVL-0.8X-65D-CA | 0.8X | 65 | 1.3mm | 8.3μm | 0.04 | 10.1 | C-MOUNT | Under 2/3 inch camera |
| FVL-1.0X-65D-CA | 1X | 65 | 920μm | 8.3μm | 0.04 | 11.5 | C-MOUNT | Under 2/3 inch camera |
| FVL-2.0X-65D-CA | 2X | 65 | 326μm | 5.6μm | 0.06 | 16.3 | C-MOUNT | Under 2/3 inch camera |
| FVL-3.0X-65D-CA | 3X | 65 | 197μm | 4.8μm | 0.07 | 22.2 | C-MOUNT | Under 2/3 inch camera |
| FVL-4.0X-65D-CA | 4X | 65 | 131μm | 4.2μm | 0.08 | 26.2 | C-MOUNT | Under 2/3 inch camera |
| FVL-5.0X-65D-CA | 5X | 65 | 97μm | 4.2μm | 0.08 | 30.2 | C-MOUNT | Under 2/3 inch camera |
| FVL-8X-70D-CA | 8X | 70 | 60μm | 4.1μm | 0.081 | 48.2 | C-MOUNT | Under 2/3 inch camera |
| FVL-0.5X-65-CA | 0.5X | 65 | 1.7mm | 8.0μm | 0.046 | 5.4 | C-MOUNT | Under 1/2 inch camera |
| FVL-0.8X-65-CA | 0.8X | 65 | 1.3mm | 8.3μm | 0.04 | 10.1 | C-MOUNT | Under 2/3 inch camera |
| FVL-1.0X-65-CA | 1X | 65 | 920μm | 8.3μm | 0.04 | 11.5 | C-MOUNT | Under 2/3 inch camera |
| FVL-2.0X-65-CA | 2X | 65 | 326μm | 5.6μm | 0.06 | 16.3 | C-MOUNT | Under 2/3 inch camera |
| FVL-3.0X-65-CA | 3X | 65 | 197μm | 4.8μm | 0.07 | 22.2 | C-MOUNT | Under 2/3 inch camera |
| FVL-4.0X-65-CA | 4X | 65 | 131μm | 4.2μm | 0.08 | 26.2 | C-MOUNT | Under 2/3 inch camera |
| FVL-5.0X-65-CA | 5X | 65 | 97μm | 4.2μm | 0.08 | 30.2 | C-MOUNT | Under 2/3 inch camera |
FVL-0.5x-65D-CA
Magnification:
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
100g
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
100g
FVL-0.8x-65D-CA
Magnification:
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
112g
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
112g
FVL-1.0x-65D-CA
Magnification:
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
82g
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
82g
FVL-2.0x-65D-CA
Magnification:
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
FVL-3.0x-65D-CA
Magnification:
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
50g
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
50g
FVL-4.0x-65D-CA
Magnification: 4x
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
54g
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
54g
FVL-5.0x-65D-CA
Magnification: 5x
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
58g
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
58g
FVL-8x-70D-CA
Magnification:
8x
Working Distance:
70
Focal depth:
60μm
Distortion:
Less than 0.4%
Resolution LP/mm:
244LP /mm
Resolution power:
4.1μm
N.A.:
0.081
F number:
48.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
100g
8x
Working Distance:
70
Focal depth:
60μm
Distortion:
Less than 0.4%
Resolution LP/mm:
244LP /mm
Resolution power:
4.1μm
N.A.:
0.081
F number:
48.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
100g

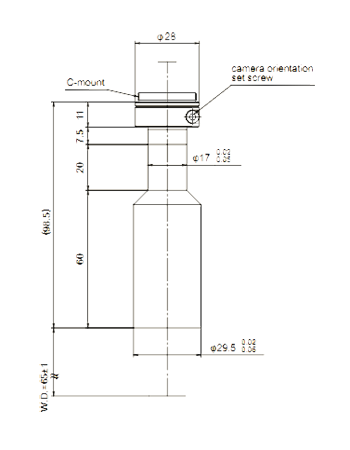

FVL-0.5x-65-CA
Magnification:
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
94g
0.5x
Working Distance:
65
Focal depth:
1.7mm
Distortion:
Less than 0.02%
Resolution LP/mm:
125LP /mm
Resolution power:
8.0μm
N.A.:
0.046
F number:
5.4
Camera mount:
C-MOUNT
Equivalent sensor:
Under 1/2 inch camera
Weight:
94g
FVL-0.8x-65-CA
Magnification:
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
106g
0.8x
Working Distance:
65
Focal depth:
1.3mm
Distortion:
Less than 0.2%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
10.1
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
106g
FVL-1.0x-65-CA
Magnification:
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
76g
1x
Working Distance:
65
Focal depth:
920μm
Distortion:
Less than 0.1%
Resolution LP/mm:
120LP /mm
Resolution power:
8.3μm
N.A.:
0.04
F number:
11.5
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
76g
FVL-2.0x-65-CA-
Magnification:
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
42g
2x
Working Distance:
65
Focal depth:
326μm
Distortion:
Less than 0.1%
Resolution LP/mm:
178LP /mm
Resolution power:
5.6μm
N.A.:
0.06
F number:
16.3
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
42g
FVL-3.0x-65-CA
Magnification:
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
44g
3x
Working Distance:
65
Focal depth:
197μm
Distortion:
Less than 0.1%
Resolution LP/mm:
208LP /mm
Resolution power:
4.8μm
N.A.:
0.07
F number:
22.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
44g
FVL-4.0x-65-CA
Magnification: 4x
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
Working Distance:
65
Focal depth:
131μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
26.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
48g
FVL-5.0x-65-CA
Magnification:
5x
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
52g
5x
Working Distance:
65
Focal depth:
97μm
Distortion:
Less than 0.1%
Resolution LP/mm:
238LP /mm
Resolution power:
4.2μm
N.A.:
0.08
F number:
30.2
Camera mount:
C-MOUNT
Equivalent sensor:
Under 2/3 inch camera
Weight:
52g
