FVL WD120
Telecentric Lens for 400K-pixel camera
What’s New

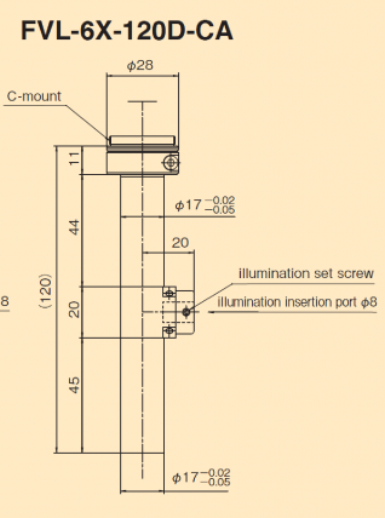

Model (Coaxial) | FVL-0.5X-120D-CA | FVL-0.75X-120D-CA | FVL-1X-120D-CA | FVL-2X-120D-CA | FVL-3X-120D-CA | FVL-4X-120D-CA | FVL-5X-120D-CA | FVL-6X-120D-CA |
Model (Straight) | FVL-0.5X-120-CA | FVL-0.75X-120-CA | FVL-1X-120-CA | FVL-2X-120-CA | FVL-3X-120-CA | FVL-4X-120-CA | FVL-5X-120-CA | FVL-6X-120-CA |
Model (L-type) | FVL-0.5X-120DL-CA | FVL-0.75X-120DL-CA | FVL-1X-120DL-CA | FVL-2X-120DL-CA | FVL-3X-120DL-CA | FVL-4X-120DL-CA | FVL-5X-120DL-CA | FVL-6X-120DL-CA |
| Magnification | 0.5X | 0.75X | 1X | 2X | 3X | 4X | 5X | 6X |
| Working distance | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Focal depth | 3.0 mm | 1.9 mm | 1.3 mm | 650 µm | 323 µm | 220 µm | 168 µm | 138 µm |
| Distortion | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % | Less than 0.1 % |
| Resolution LP/mm | 80 LP/mm | 85 LP/mm | 91 LP/mm | 107 LP/mm | 120 LP/mm | 128 LP/mm | 135 LP/mm | 142 LP/mm |
| Resolution power | 12.5 µm | 11.8 µm | 11.0 µm | 9.3 µm | 8.3 µm | 7.8 µm | 7.4 µm | 7.0 µm |
| N.A. | 0.027 | 0.028 | 0.030 | 0.036 | 0.040 | 0.043 | 0.045 | 0.048 |
| F number | 9.3 | 13.3 | 16.7 | 32.5 | 36.3 | 43.9 | 52.4 | 62.2 |
| Camera mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount |
| Equivalent sensor | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera | Under 2/3 inch camera |
| Weight (Coaxial) | 198 g | 124 g | 105 g | 66 g | 58 g | 66 g | 67 g | 75 g |
| Weight (Straight) | 192 g | 118 g | 99 g | 60 g | 52 g | 60 g | 61 g | 70 g |
| Weight (L-type) | 198 g | 124 g | 105 g | 66 g | 58 g | 66 g | 67 g | 75 g |
