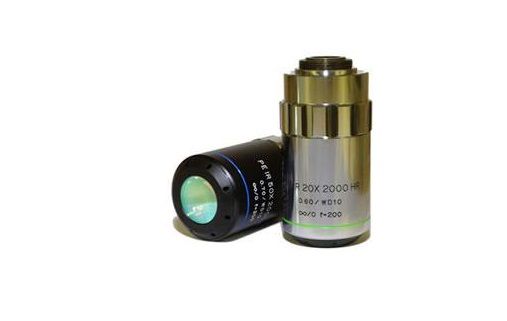

PE IR 2000 HR

Enhanced version of the PE IR series. These objective lens have a high transmission that extends out to 2000nm along with improved resolution performance.

Full specs are available for download on the datasheets.

PE IR 2000 HR

PE IR 2000 HR

This objective lens series is color corrected with lens that are able to correct 0 - 700 micron thickness of silicon and glass.

It has high resolution/throughput design that enables collection of weak signals from samples without re-focusing.

PDF icon DATASHEET
Model Magnification Working Distance N.A. RP (μm) DOF (μm) Eyepiece FOV (mm) 2/3” Format FOV (mm)
PE IR 50X 2000 HR
50x
10.0
0.7
1.4
1.2
0.44
0.17 x 0.13
PE IR 20X 2000 HR
20x
10.0
0.6
1.6
2.1
1.1
0.44 x 0.33
